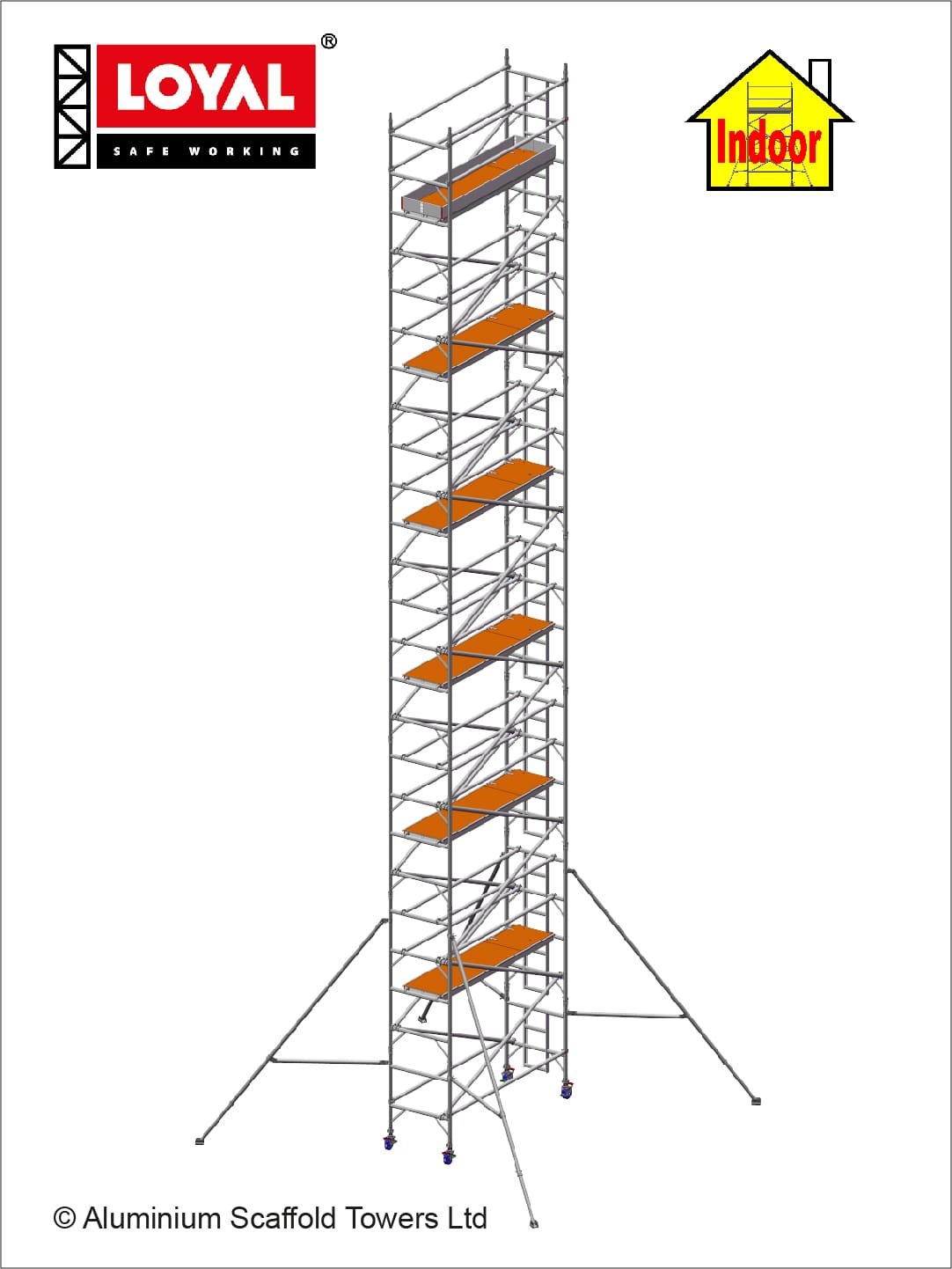

14.2m(46′7″) Working Height – Loyal Tower 850 Plus, 2.5m(8′2″) Long, Loyal Loyal Industrial Scaffold Tower Plus

Yes, all the components are listed on the technical diagram given on the product detail page.

Yes, please go to Industrial Tower Accessories.

Yes.

Yes, but recommend one person per platform.

According to EN 1004, outriggers are supplied for working heights of 4.2m upwards on the Single Width Industrial Towers and 4.7m upwards on the Double Width Industrial Towers to increase your base area making the tower as safe as possible.

Please see the Official TUV website for our certificate.

These are the platform lengths (measured centre-to-centre on the platform hooks).

These are the widths of the Industrial Towers in millimetres (measured centre-to-centre on the frame uprights). The outer dimension is 50mm more.

The Plus versions have platforms every 2m.

150mm diameter dual locking wheels are supplied with all our Industrial Towers.

The platform only requires 2 points of contact, one at each end, for a solid connection to the tower. They are required to hold the platform in position and avoid external forces from lifting the platform free.

The base area of the 3.7m working height tower is sufficient without outriggers. They are not required by EN 1004 at this height so satisfy the Working at Height Regulations.
