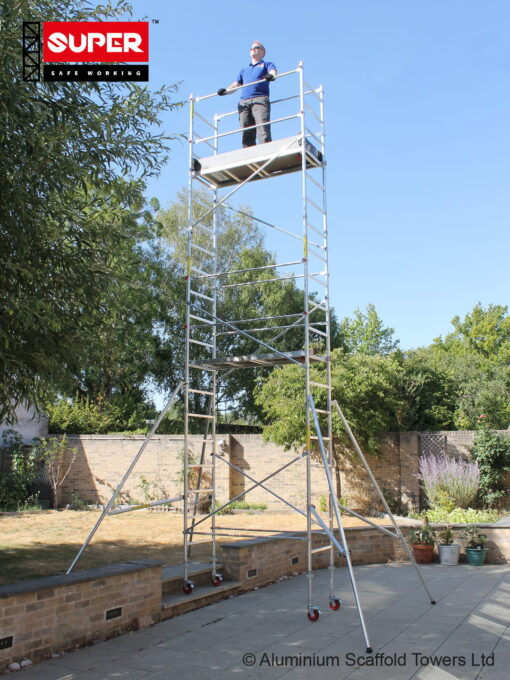

| Product name | eDIY 7 Adv Plus (5 in ONE) Tower with 4 Tele Outriggers and Toeboard |
| Width | 0.6m (2′) |
| Length | 1.55m (5′1″) |
| Max Working Height | 7.15m (23′6″) |
| Max Tower Height | 6.05m (19′10″) |
| Max Platform Height | 5.15m (16′11″) |
| swl per platform(kg) | 150kg (23.6 stone) |
| Product Weight | 69.5kg |
| Platform Height Adjustment | 0.3m (12″) |
| Base Bar Length | 1.22m (4′) |
| Pack1 size | 210 x 68 x 19 cm |
| Pack2 size | 226 x 68 x 16 cm |
| Pack3 size | 85 x 16 x 13 cm |
| Pack4 size | 163 x 18 x 11 cm |
Manuals:
- Instruction Sheet for eDIY 5 Scaffold Tower (Basic tower for reference)
- Instruction Sheet eDIY 4 & 5 upgrades to eDIY 6 & 7 using the +2m Upgrade Pack
Videos:
| Dimensions (cm) | 226 x 68 x 59.5 |
|---|---|
| Weight (kg) | 69.49 |
| Volume (m3) | 0.56716 |
| Number of Packs | 4 |
1 review for eDIY 7 Advanced Plus (5 in ONE) Scaffold Tower with 4 Telescopic Outriggers & Toeboard
Only logged in customers who have purchased this product may leave a review.
FAQs
eDIY Adv+ (Height Adj Wheels) with Toeboard
Yes, our eDIY Advanced Plus Towers can reach a maximum working height of 7.15m (23’5″).
Our SUPER DIY Tower has a maximum working height of 9.35m (30’9″).
For anything taller please see our Trade King and Loyal Industrial Towers.
0
0
The eDIY range will fit into most estate cars.
Please check the packing size details in the specification table on the product pages and your car load space before ordering.
0
0
Yes, all our Scaffold Towers can be used indoors.
0
0
Only if your existing tower is from our DIY tower range. You cannot mix brands from different manufacturers.
0
0
Yes.
0
0
Yes, they are included as standard so you can use the tower in the standard set up too.
0
0
Certification is not currently required for DIY towers. Our domestic tower platforms are load tested according to EN1004 Class 3 standard.
0
0
Take a look at our video below where a colleague assembles an eDIY 5 Scaffold Tower in just a few minutes. The higher towers will take slightly longer, and it is advisable to do this with two people.
Quick Installation of the eDIY Tower – Standard Version
0
0
| Model | Packs |
|---|---|
| eDIY 4 Advanced Plus with Toeboard | 3 |
| eDIY 5 Advanced Plus with Toeboard | 3 |
| eDIY 6 Advanced Plus with Toeboard | 4 |
| eDIY 7 Advanced Plus with Toeboard | 4 |
*Please see the bottom of the description table on the product pages for the pack sizes.
0
0
Only one person is recommended.
0
0
The DIY Tower base bars are 1.22m (4′) long.
0
0
The width of our DIY towers is 600mm (measured centre-to-centre on the frame uprights). The outer dimension is 40mm more.
0
0
Yes, you can buy a 2m extension pack. Please see eDIY Tower Accessories for the extension pack.
1
0
The extension pack has almost as much material as a tower. The pack includes an extra platform, 4 telescopic outriggers and the corresponding extension frames, horizontal braces, and diagonal braces.
1
0
The platform only requires 2 points of contact, one at each end, for a solid connection to the tower. They are required to hold the platform in position and avoid external forces from lifting the platform free.
0
0
